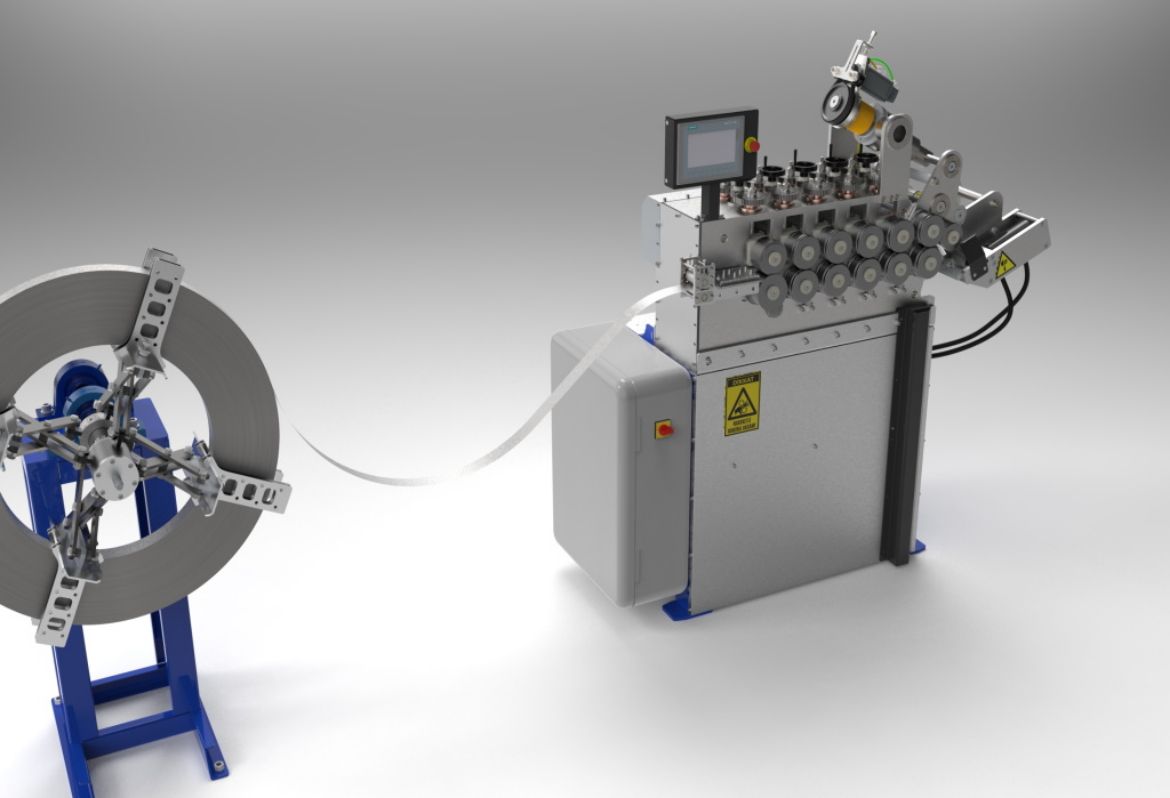

Lock Ring Clamp Machine

Picture of Lock Ring Clamp Machine
Picture of Lock Ring Clamp Machine Picture of Lock Ring Clamp Machine Picture of Lock Ring Clamp Machine

Lock Ring Clamp Machine

Call for pricing
| Be the first to review this product

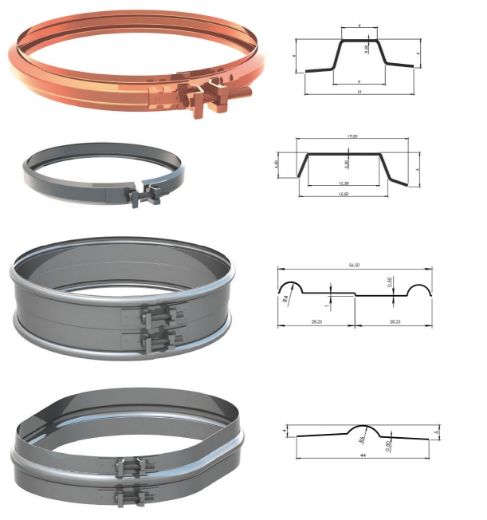

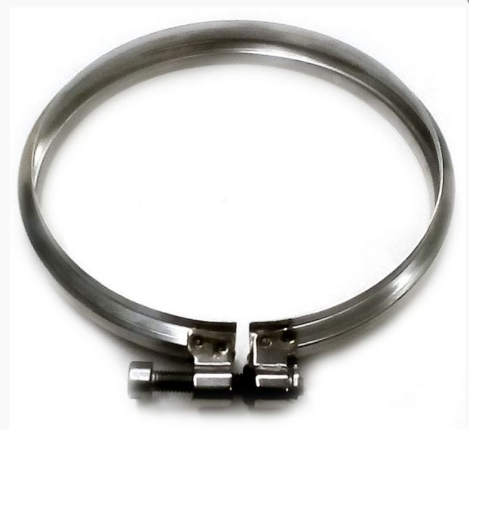

It is used to connect, stabilize, or support chimney pipes.
  • Overview
  • Video
  • Specifications
  • Reviews

Automatic clamping machine is designed to speed up the process and reduce human labor. This machine can apply various types of clamps, suitable for different sizes need. Additionally, they perform the clamp application process precisely, reliably and quickly.

FEATURES
• Works with roller rolling method
• Special sheet driver with 4 rolls
• Precise length reading and cutting thanks to servo encoder
• Automatic diameter adjustment
• Waste-free manufacturing
• Data entry capability thanks to HMI screen
• Max sheet thickness 1.2mm (2mm option)
• Hydraulic cutting unit
• Ø100mm- Ø1500mm

Products specifications
Attribute nameAttribute value
Technical Table

Power

 7.5 kw

Air

No

Hydraulic Unit

Yes

Feed Rate

1-4 mt/dk

Sheet Thickness

Max 1.2

Sheet Width

70-100mm According to Form

Diameter

100mm - 800mm

1500mm (optional)
